Si usted está trabajando en un ambiente de red, basado en archivos, y necesita ver la salida de sus proyectos en tiempo real utilizando monitores HDMI económicos, nuestra solucion de hardware HDSPARK es ideal.
Utilizando la interfaz PCI Express, éste producto está disponible con versiones completas o actualizaciones del software de edición no lineal Edius, además de una placa con salida HDMI que soporta monitoreo en tiempo real a resolución completa. También ofrece audio embebido por HDMI y conectores RCA para monitoreo de audio estereo de alta calidad.

La plataforma HDSPARK está disponible en tres configuraciones distintas: la primera con una version completa del software Edius 5, otra con una actualización de Edius 5 para usuarios del Edius 4, y por último, solamente la placa HDSPARK.

La solucion HDSPARK también lo potencia con la visualización de efectos y contenidos a resolución completa constantemente sincronizada directamente desde la linea de tiempo del Edius.

HDSPARK puede manejar cualquier mezcla de contenidos de video en HD o SD; ilimitadas capas de video, audio, titulos y graficos; y cualquier combinación de efectos en tiempo real.

• HDMI output for full resolution real-time monitoring from included EDIUS NLE software*
• Embedded HDMI audio output and separate RCA jacks for high-quality audio monitoring
• Video and audio output stays perfectly in sync with editing windows for accurate editing and trimming
• Edit any mix of SD- and HD resolution video content together in real time
• Works with many different native video formats, including DV, HDV, AVCHD, uncompressed, and more
• Real-time SD/HD resolution, aspect-ratio and frame-rate conversion and output, including 16:9-to-4:3 and NTSC-to-PAL
• New GPU-accelerated 3D transitions
• Real-time editing performance increases as CPU power increases
• Supports newer file-based formats, including Infinity™ JPEG 2000, XDCAM and XDCAM EX, P2 (DVCPRO and AVC-Intra), and GFCam
• Compatible with Windows XP and Windows Vista

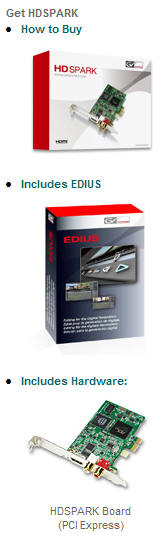

• HDSPARK (HSX-E1) PCI Express x1 bus card
• EDIUS software installation disc set (DVD-ROM)
• EDIUS USB dongle
• EDIUS QuickStart guide
• Hardware setup manual

Package Contents (HDSPARK with EDIUS Upgrade):

• HDSPARK (HSX-E1) PCI Express x1 bus card
• EDIUS upgrade software installation disc set (DVD-ROM)
• EDIUS USB dongle
• EDIUS QuickStart guide
• Hardware setup manual

Package Contents (HDSPARK standalone):

• HDSPARK (HSX-E1) PCI Express x1 bus card
• Hardware setup manual

• PCI Express Rev. 1.0a x1 lane

Video Formats (Output) (HDMI)

• 1920x1080i50/59.94
• 1920x1080p23.98
• 1280x720p50/59.94
• 720x480i59.94
• 720x576i50
• 720x480p59.94
• 720x576p50

Video Output Connector

• HDMI 1 port (HDCP not supported)

Audio Formats

• LPCM 48kHz 24-bit

Audio Output Connectors

• HDMI LPCM 8-channel
• Monitor: 1x stereo RCA (unbalanced)

• +12V: 0.05A, +3.3V: 0.9A

• 68.9 x 97 mm (2.71 x 3.82 in.) (HxW)

• CE, FCC CLASS B, C-Tick

• Intel or AMD CPU with a 3 GHz processor speed or faster (multiple CPUs and/or multi-core CPUs are recommended - minimum SSE2 instruction set required)
• 1 GB RAM (2 GB or more recommended)
• One free PCI Express x1 slot
• 800 MB or more space required for software installation
• Drive with ATA100/7,200 rpm or faster capable of sustaining at least 20 MB/s data transfer
  • Available HDD disk space should be twice the size of the file to be edited
  • A RAID stripe set of two or more hard disk drives is required for multiple HD stream output
• A graphics card with at least 256 MB of graphics memory (512 MB recommended) with support for Direct3D 9.0c or later, and PixelShader Model 3.0 or later is required (PixelShader Model 4.0 or later recommended)
• Sound card with WDM driver support required
• DVD-ROM for software installation
• DVD-R/RW or DVD+R/RW drive for creating DVD-Video with DVD Creator
• Free USB port (1.1 or higher) for security key
• Windows XP Home or Windows XP Professional (SP2 or later, 32-bit)
• Windows Vista (SP1 or later, 32- or 64-bit), including the following operating systems:
  • Windows Vista Home Basic
  • Windows Vista Home Premium
  • Windows Vista Business
  • Windows Vista Ultimate
